ĐẦU GHI 4 KÊNH HIKVISION DS-7204HGHI-K1 (S)
ĐẦU GHI 4 KÊNH HIKVISION DS-7204HGHI-K1 (S)
ĐẦU GHI 4 KÊNH HIKVISION DS-7204HGHI-K1 (S)
ĐẦU GHI 4 KÊNH HIKVISION DS-7204HGHI-K1 (S)
ĐẦU GHI 4 KÊNH HIKVISION DS-7204HGHI-K1 (S)
-color-null-1.jpg)
ĐẦU GHI 4 KÊNH HIKVISION DS-7204HGHI-K1 (S)
MÃ SẢN PHẨM: ĐẦU GHI 4 KÊNH HIKVISION DS-7204HGHI-K1 (S)
Giá:
x 929,500 VND
Giá trên chưa bao gồm thi công lắp đặt, chi phí vận chuyển và thuế VAT
CHI TIẾT SẢN PHẨM
Mô tả
Thông số kỹ thuật
Đầu ghi hình 4 kênh 5 in 1 HIKVISION DS-7204HGHI-K1(S)
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 5-ch camera IP input (up to 1080p)
- Encoding ability up to 1080p lite @ 25/30 fps
- Max. 1200 m for 720p HDTVI signal
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 5-ch camera IP input (up to 1080p)
- Encoding ability up to 1080p lite @ 25/30 fps
- Max. 1200 m for 720p HDTVI signal
| Model | DS-7204HGHI-K1(S) |
| Recording | |
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding resolution | When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF |
| When 1080p lite mode enabled: 1080p Lite/HD 720p lite/WD1/4CIF/VGA/CIF | |
| Frame rate | Main stream: |
| When 1080p Lite mode not enabled: | |
| For 720p stream access: | |
| 720p/WD1/4CIF/VGA/CIF@25 fps | |
| (P)/30 fps (N) | |
| When 1080p Lite mode enabled: | |
| 1080p Lite/HD 720p | |
| Lite/WD1/4CIF/VGA/CIF@25 fps | |
| (P)/30 fps (N) | |
| Sub-stream: 4CIF/CIF/QVGA@25 fps (P)/30 fps (N) | |
| Video bit rate | 32 Kbps to 4 Mbps |
| Stream type | Video, Video & Audio |
| Audio compression | G.711u |
| Audio bit rate | 64 Kbps |
| Video and Audio | |
| IP video input | 1-ch (up to 5-ch) Up to 1080p resolution |
| Analog video input | 4-ch |
| BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
| Turbo HD input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS input | Support |
| HDMI/VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| HDMI/VGA simultaneous output | |
| Audio input | 1-ch RCA (2.0 Vp-p, 1 KΩ) |
| 4-ch via coaxial cable | |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Synchronous playback | 4-ch |
| Network | |
| Remote connection | 32 |
| Network protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Network interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Auxiliary interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 4 TB capacity for each disk |
| USB interface | Rear panel: 2 × USB 2.0 |
| General | |
| Power supply | 12 VDC, 1.5 A |
| Consumption (without HDD) | ≤ 16W |
| Working temperature | 10 °C to 55 °C (14 °F to +31 °F) |
| Working humidity | 10% to 90% |
| Dimension (W × D × H) | 260 × 222 × 45 mm |
| Weight (without HDD) | ≤ 1 kg |
| - Bảo hành: 24 tháng. | |

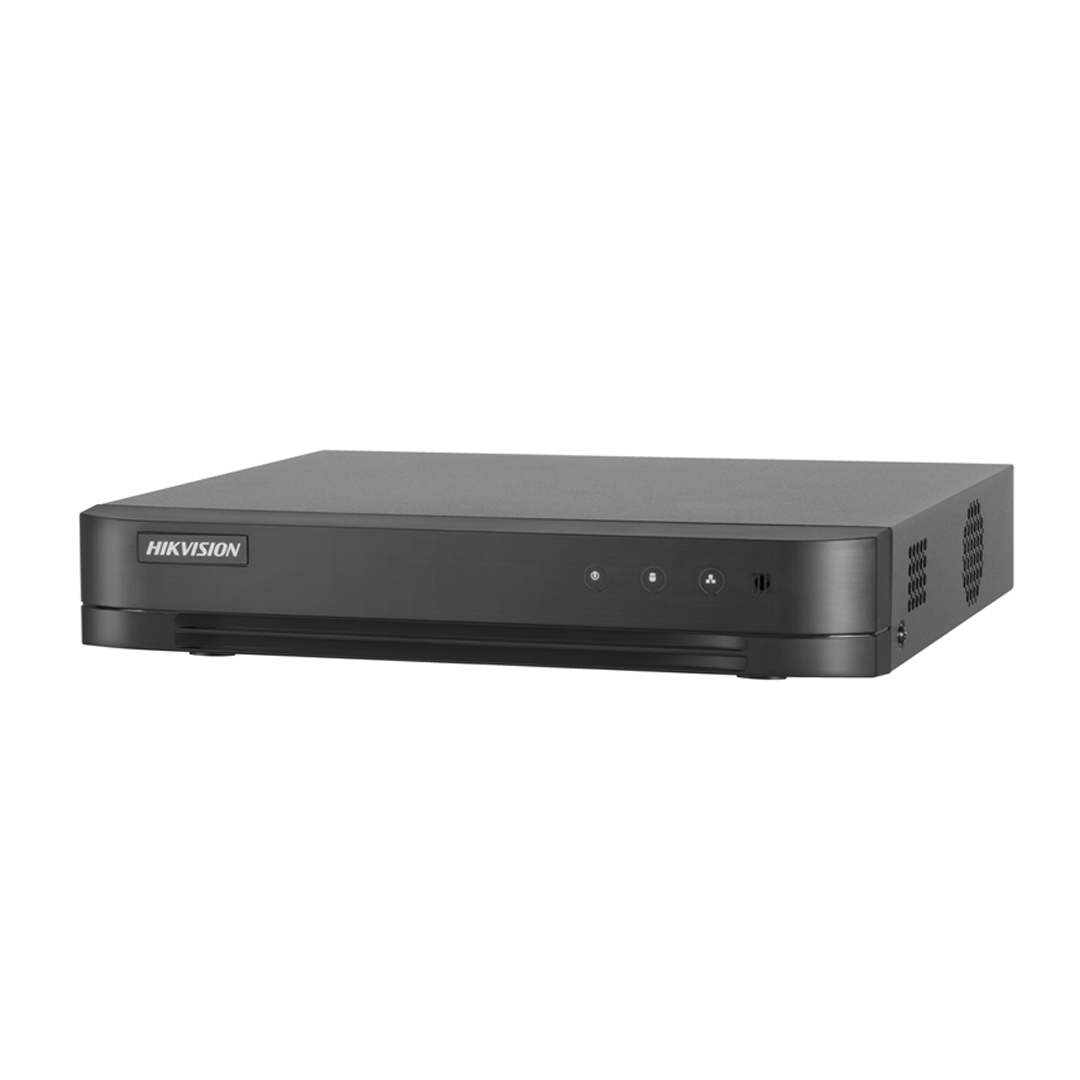

Hình ảnh của sản phẩm:
